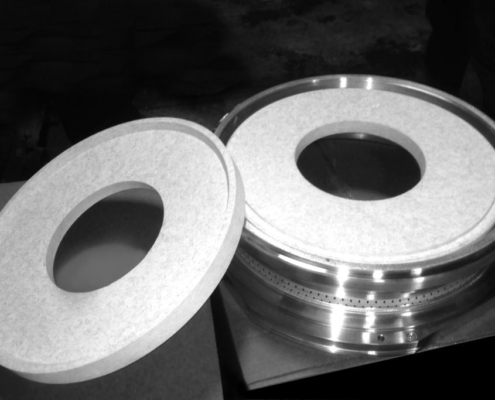

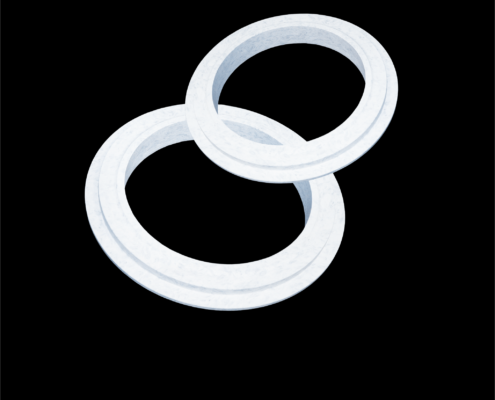

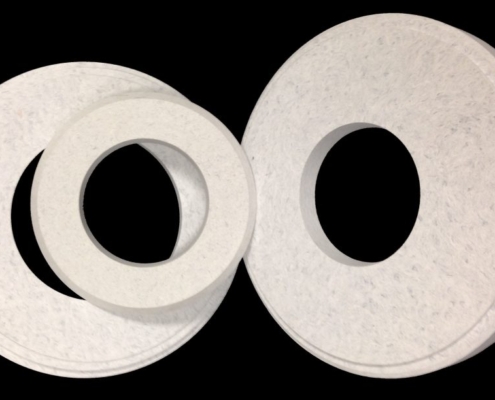

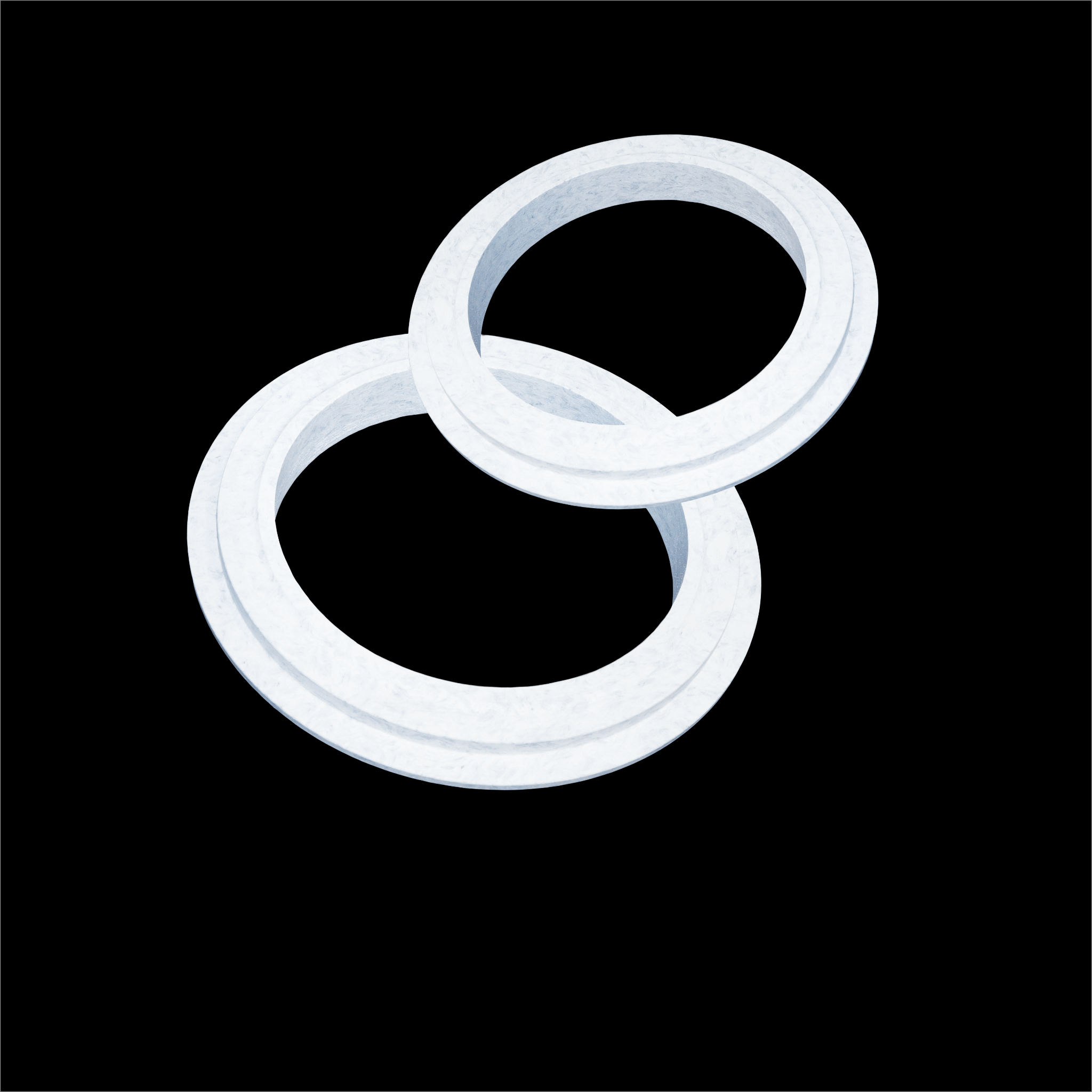

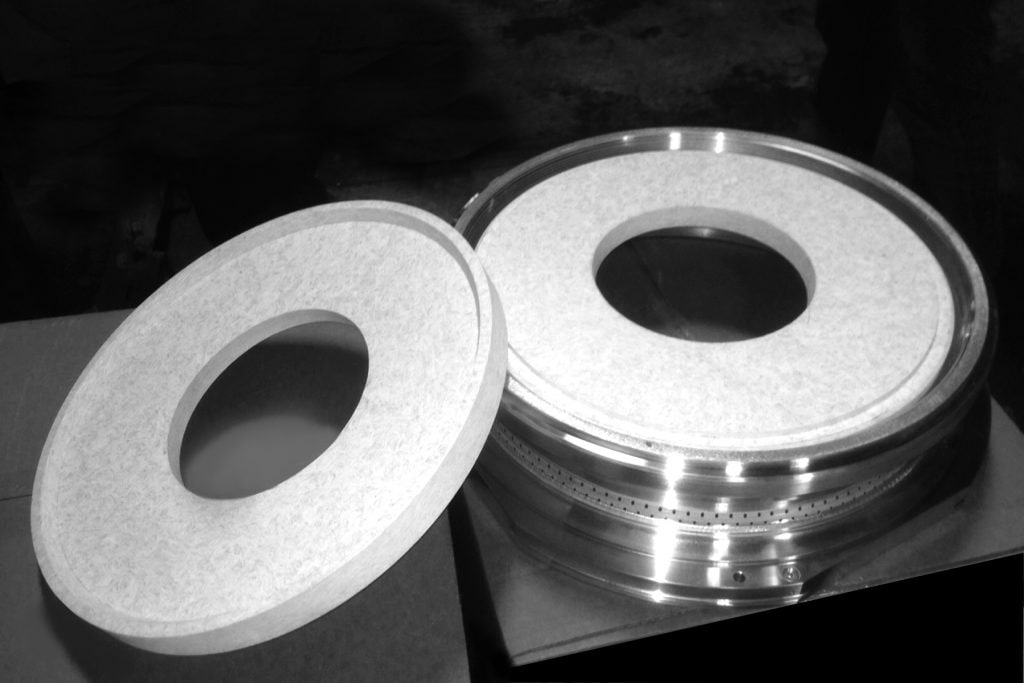

Ultraplate (transition plate)

Ultraplate is made from a carbon fiber reinforced calcium silicate insulation board.The premium quality material is composed of superior heat-resistant xonotlite crystal with special reinforced fiber.

Characteristic

Xonotlite crystals with excellent heat resistance can be directly in contact with molten aluminum alloys.
The special reinforcing fiber can resist the thermal shock generated by high-temperature molten aluminum alloy, which is beneficial for continuous use and prolongs the service life of the product.
The smooth, non-porous surface allows for easy removal of any metal residue without damaging components after cooling.
The minimal thermal conductivity retains the high thermal insulation effect of molten aluminum and contributes to the energy reservation of manufacturing equipment.

Physical Properties

Project	Condition	unit	standard value
Density		kg/m3	820
Bending Strength	700℃-3hr	N/cm2	830
Compressive strength	5.0% strain time	N/cm2	980
Linear shrink	700℃-3hr	%	0.4
Linear shrink	850℃-3hr	%	0.6
Thermal conductivity	200℃	W/(m･K)	0.2
	400℃		0.203
	600℃		0.205
